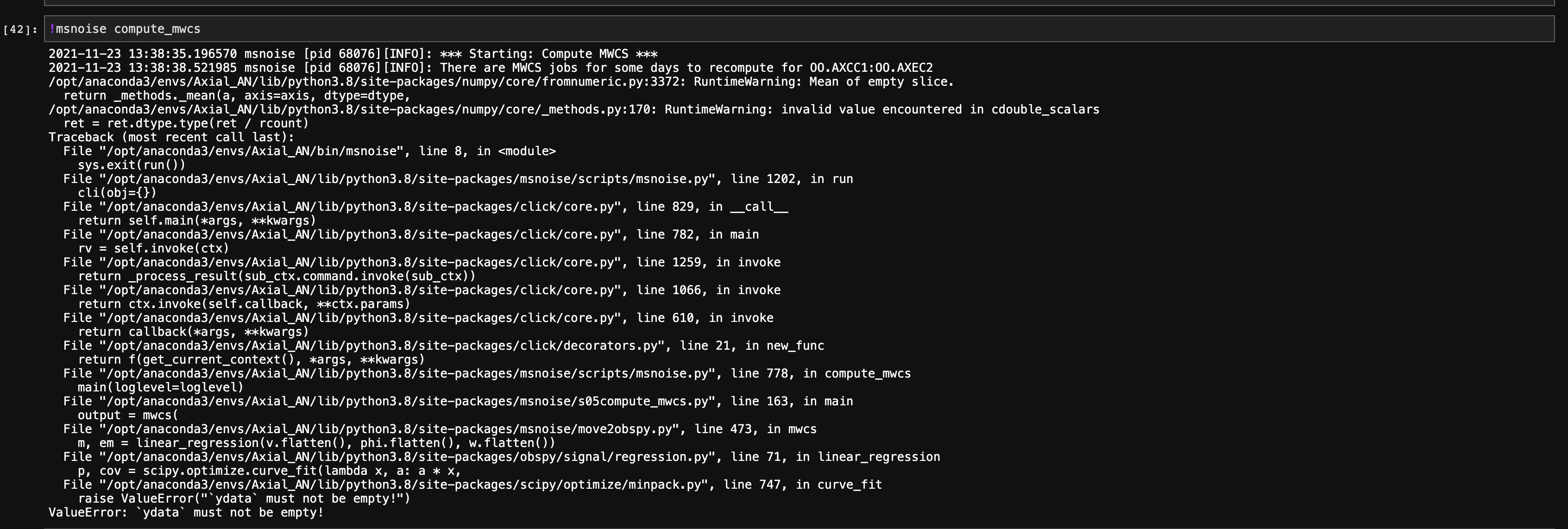

Hello everyone! Hope everyone is doing well! I ran into an error while trying to run compute_mwcs. I am not quite sure what the error fully means and was wondering if anyone could help me with the error or point me in the right direction to troubleshoot and resolve the error. Thanks! [image: Screen Shot 2021-11-23 at 8.43.25 AM.png] Best Wishes, Michelle Lee ---------------------------------------------------------------------- ------ Ph.D. Candidate Columbia University: Lamont-Doherty Earth Observatory Department of Earth and Environmental Science Marine Geology and Geophysics c: (206)397-2488 alt. email: mkl2158(a)columbia.edu _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be https://apc01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fmailm an-as.oma.be%2Fmailman%2Flistinfo%2Fmsnoise&data=04%7C01%7Cmartha. savage%40vuw.ac.nz%7Cfabff5fb436344d914ec08d9af1f89ae%7Ccfe63e23695142 7e8683bb84dcf1d20c%7C0%7C0%7C637733372332973565%7CUnknown%7CTWFpbGZsb3 d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7 C3000&sdata=PjD33VOfLLuOzp%2BUbWhVWZfKS%2FQAqw5L8k%2F6pZ4%2Fj9g%3D &reserved=0

Hi Martha, Yes, I do have some documentation about this. Give me a day to get it sorted out. My last two MS students wrote some things about this. It comes from the original papers that Aurelien Mordret wrote. Dylan On Wed, Dec 8, 2021 at 3:57 AM Martha Savage <martha.savage(a)vuw.ac.nz> wrote:

Thanks very much Dylan! It's great that you took the time to explain these meanings, despite the holidays and possibly AGU. Have a happy holiday! Martha Martha Savage Professor of Geophysics, SGEES Victoria University of Wellington Te Whare Wananga o te Upoko o te Ika a Maui Cotton 529 Box 600, Wellington 6140 New Zealand Email: Martha.Savage(a)vuw.ac.nz DDI: +64 (0)4 463-5961 Mobile: +64 (0)21-262-7516 Makere ana nga here -----Original Message----- From: msnoise-bounces(a)mailman-as.oma.be &lt;msnoise-bounces(a)mailman-as.oma.be&gt; On Behalf Of Dylan Mikesell Sent: Monday, 20 December 2021 8:42 PM To: Python Package for Monitoring Seismic Velocity Changes using Ambient Seismic Noise &lt;msnoise(a)mailman-as.oma.be&gt; Cc: Dagim Yoseph &lt;dagim.yoseph(a)aau.edu.et&gt;et>; El Mestel &lt;el.mestel(a)vuw.ac.nz Subject: Re: [MSNoise] compute mwcs error Hi Martha et al., By 1 day, I meant 1 week I guess. Sorry about that. Here are my notes from Aurelien's original message about the FTAN parameters. The bmin and bmax parameters are the bandwidth min and max of the gaussian filters used in the FTAN algorithm. The FTAN applies a set of Gaussian filters to the seismograms with different central frequencies. The width of the filter (in Hz) for the minimum central frequency is bmin and vice versa for bmax. The width for the intermediate filters increases linearly between bmin and bmax. So you can determine the beta for each central frequency (f) as, *beta = linspace(bmin, bmax, nfreqs)* These parameters are equivalent to the "alpha" parameters in this paper defining the FTAN: Herrmann, R. B. (1973). Some aspects of band-pass filtering of surface waves. *Bulletin of the Seismological Society of America*, *63*(2), 663-671. If you look into the cpp source code in libfta.cpp (starting at line 31) you see the Gaussian filter definition. *double filtre_Gaussien(double f, double fh, double beta){//printf("freq : %f filtrage : %f beta : %f\n",f, fh, beta);return 1.0/beta*exp(-0.5*(f-fh)*(f-fh)/(beta*beta));}* Keep in mind that in this msnoise-tomo case, alpha/beta changes with each frequency. If I recall correctly, Aurelien's recommendation was to have the bmin/bmax vary by orders of magnitude (e.g. bmin=0.03, bmax=3.0). I can't find his email stating this or the reason, but this is what I recollect. If you play with the values you will see how the bandwidth changes the structure in the FTAN image. In the end, this changes how the autopicking picks. Please let me know if you have any other questions. Dylan On Wed, Dec 8, 2021 at 8:15 AM Dylan Mikesell < DylanMikesell(a)boisestate.edu&gt; wrote: > Hi Martha, > Yes, I do have some documentation about this. Give me a day to get it > sorted out. My last two MS students wrote some things about this. It > comes from the original papers that Aurelien Mordret wrote. > Dylan > On Wed, Dec 8, 2021 at 3:57 AM Martha Savage &lt;martha.savage(a)vuw.ac.nz&gt; > wrote: >> Dear Thomas, >> >> Can you tell us what stage your paper "Lecocq, T., Mordret, A. (in >> prep), MSNoise-TOMO." Is in? We are trying to figure out how to use >> MSnoise-tomo and are having trouble understanding what some of the >> parameters are and therefore what would be good values to use. We >> hope that some of the answers might be in that paper. >> >> Otherwise, do you have any other documentation or hints? Right now >> the parameter we are most concerned with is the Gaussian filter >> bandwidth bmin and bmax. >> >> >> Thanks, >> >> Martha >> >> Martha Savage >> Professor of Geophysics, SGEES >> Victoria University of Wellington >> Te Whare Wananga o te Upoko o te Ika a Maui Cotton 529 Box 600, >> Wellington 6140 New Zealand >> >> Email: Martha.Savage(a)vuw.ac.nz >> DDI: +64 (0)4 463-5961 >> Mobile: +64 (0)21-262-7516 >> Makere ana nga here >> >> >> -----Original Message----- >> From: msnoise-bounces(a)mailman-as.oma.be < >> msnoise-bounces(a)mailman-as.oma.be&gt; On Behalf Of Thomas Lecocq >> Sent: Wednesday, 24 November 2021 8:53 PM >> To: msnoise(a)mailman-as.oma.be >> Subject: Re: [MSNoise] compute mwcs error >> >> Hi, >> >> This usually means that no points for computing the linear regression. >> Did you set up a very very narrow filter, narrower than the number of >> points available in the spectrum ? >> >> Thomas >> >> Le 23/11/2021 à 14:49, Michelle Lee a écrit : >> > Hello everyone! >> >> > Hope everyone is doing well! I ran into an error while trying to >> > run compute_mwcs. I am not quite sure what the error fully means >> > and was wondering if anyone could help me with the error or point >> > me in the right direction to troubleshoot and resolve the error. Thanks! >> > [image: Screen Shot 2021-11-23 at 8.43.25 AM.png] Best Wishes, >> > Michelle Lee >> > ------------------------------------------------------------------- >> > --- >> > ------ >> > Ph.D. Candidate >> > Columbia University: Lamont-Doherty Earth Observatory Department of >> > Earth and Environmental Science Marine Geology and Geophysics >> > c: (206)397-2488 >> > alt. email: mkl2158(a)columbia.edu >> >> >> > _______________________________________________ >> > MSNoise mailing list >> > MSNoise(a)mailman-as.oma.be >> > https://apc01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fma >> > ilm >> > an-as.oma.be %2Fmailman%2Flistinfo%2Fmsnoise&amp;data=04%7C01%7Cmartha. >> > savage%40vuw.ac.nz%7Cfabff5fb436344d914ec08d9af1f89ae%7Ccfe63e23695 >> > 142 >> > 7e8683bb84dcf1d20c%7C0%7C0%7C637733372332973565%7CUnknown%7CTWFpbGZ >> > sb3 >> > d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3 >> > D%7 >> > C3000&amp;sdata=PjD33VOfLLuOzp%2BUbWhVWZfKS%2FQAqw5L8k%2F6pZ4%2Fj9g >> > %3D >> > &amp;reserved=0 >> _______________________________________________ >> MSNoise mailing list >> MSNoise(a)mailman-as.oma.be >> >> https://apc01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fmail >> man-as.oma.be%2Fmailman%2Flistinfo%2Fmsnoise&amp;data=04%7C01%7Cmarth >> a.savage%40vuw.ac.nz%7C6cac12845d37441cfef608d9c38c7248%7Ccfe63e23695 >> 1427e8683bb84dcf1d20c%7C0%7C0%7C637755830571787900%7CUnknown%7CTWFpbG >> Zsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0 >> %3D%7C3000&amp;sdata=KAfRU9QgBYppiV3w6qetlz%2Bj6NQobK6Tk83ByrX5HUg%3D >> &amp;reserved=0 _______________________________________________ >> MSNoise mailing list >> MSNoise(a)mailman-as.oma.be >> https://apc01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fmail >> man-as.oma.be%2Fmailman%2Flistinfo%2Fmsnoise&amp;data=04%7C01%7Cmarth >> a.savage%40vuw.ac.nz%7C6cac12845d37441cfef608d9c38c7248%7Ccfe63e23695 >> 1427e8683bb84dcf1d20c%7C0%7C0%7C637755830571787900%7CUnknown%7CTWFpbG >> Zsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0 >> %3D%7C3000&amp;sdata=KAfRU9QgBYppiV3w6qetlz%2Bj6NQobK6Tk83ByrX5HUg%3D >> &amp;reserved=0 >> _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be https://apc01.safelinks.protection.outlook.com/?url=http%3A%2F%2Fmailman-as… _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be http://mailman-as.oma.be/mailman/listinfo/msnoise
