both PCs) and I got this error message: oscar@terminus:~/msnoise_sismo$ py s07plot_dtt.py Traceback (most recent call last): File "s07plot_dtt.py", line 13, in <module> import matplotlib.pyplot as plt File

line 98, in <module> _backend_mod, new_figure_manager, draw_if_interactive, _show = pylab_setup() File

line 28, in pylab_setup globals(),locals(),[backend_name],0) File

File

which was not found. Please help!!!!! Oscar _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be http://mailman-as.oma.be/mailman/listinfo/msnoise

Aurelien, thank you for your answer! I did upgrade matplotlib to 1.4.0 but the

message is still there. I tried to comment the line #3 in

UserWarning: /home/oscar/.python-eggs is writable by group/others and vulnerable to attack when used with get_resource_filename. Consider a

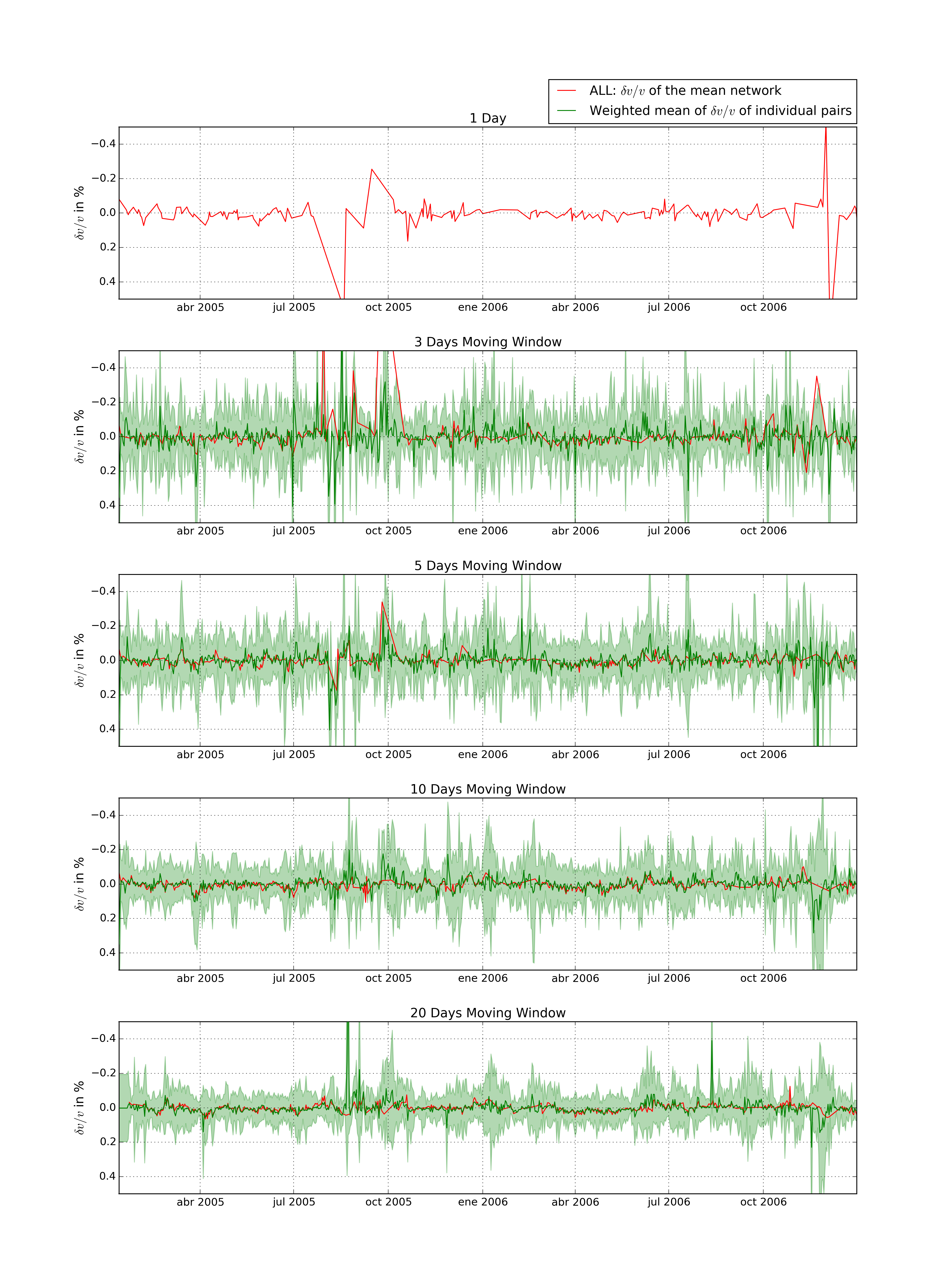

secure location (set with .set_extraction_path or the PYTHON_EGG_CACHE environment variable).* *Traceback (most recent call last):* * File "s07plot_dtt.py", line 123, in <module>* * plt.savefig('dtt_allmovstacksNEW_%s.png' % dttname, dpi=300)* *NameError: global name 'dttname' is not defined* I would apreciate any help! Thanks! Oscar On Tue, Oct 7, 2014 at 11:25 AM, Aurélien Mordret &lt;mordret(a)mit.edu&gt;

>> line 6, in <module> >> import backend_wx # already uses

>> line 53, in <module> >> raise ImportError(missingwxversion) >> ImportError: Matplotlib backend_wx and backend_wxagg require

>> which was not found. >> >> Please help!!!!! >> >> Oscar >> _______________________________________________ >> MSNoise mailing list >> MSNoise(a)mailman-as.oma.be >> http://mailman-as.oma.be/mailman/listinfo/msnoise >> > > > -- > ========================== > > Aurelien Mordret > > Postdoctoral fellow > Department of Earth, Atmospheric and Planetary Sciences > Massachusetts Institute of Technology > 54-526 > Cambridge, MA 02139-4307 > e-mail: mordret(a)mit.edu > web: http://web.mit.edu/mordret/www > _______________________________________________ > MSNoise mailing list > MSNoise(a)mailman-as.oma.be > http://mailman-as.oma.be/mailman/listinfo/msnoise > > _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be http://mailman-as.oma.be/mailman/listinfo/msnoise

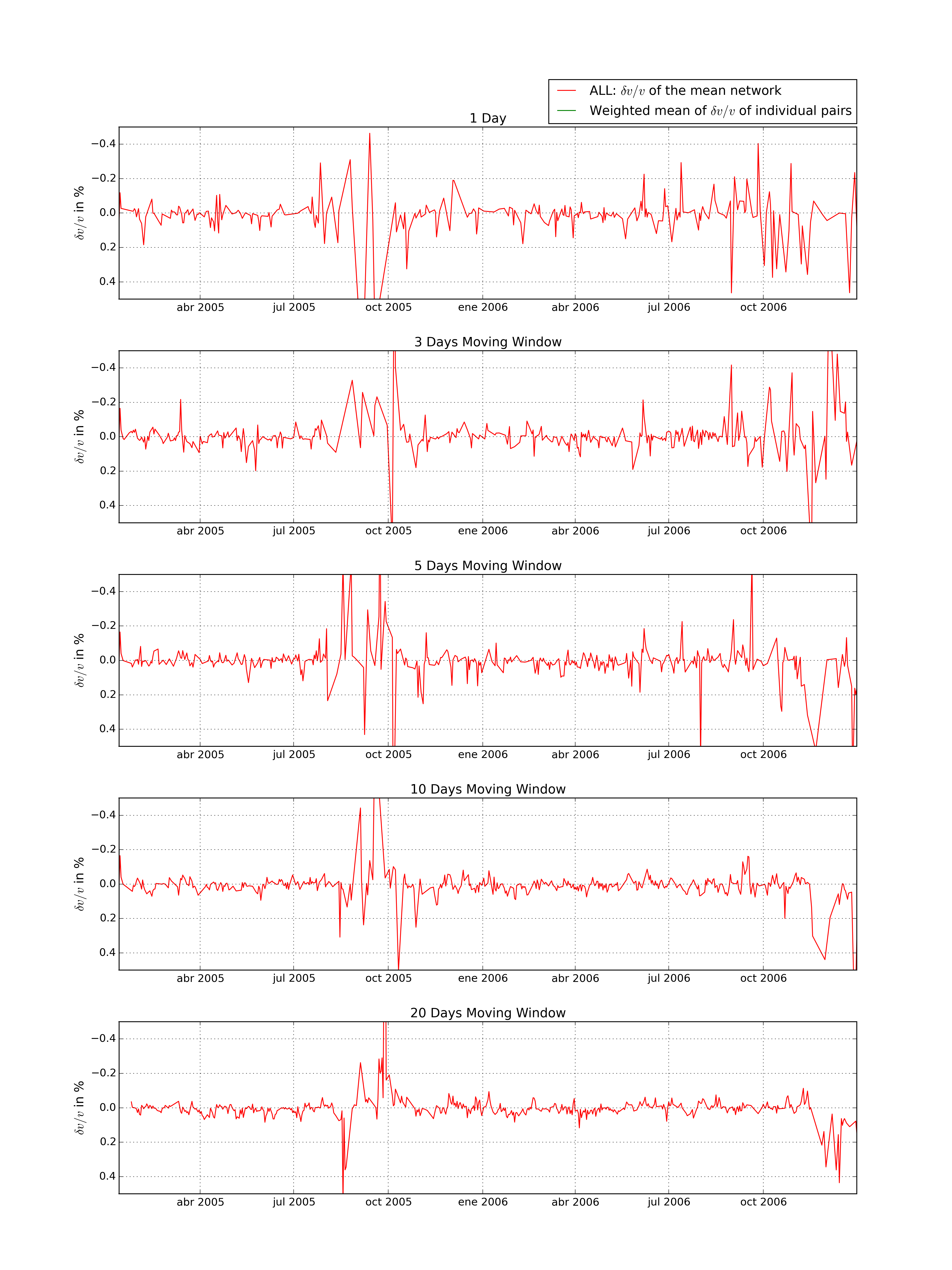

thank you very much for your help! It actually worked but with an empty figure window. I tried to assign a name to *dttname* but with the same result. Any idea? Thanks! Oscar On Tue, Oct 7, 2014 at 5:53 PM, Aurélien Mordret &lt;mordret(a)mit.edu&gt; wrote: Hi Oscar, > It seems to me that you miss the wxPython package. Try to install it. > That > should fix the mpl.use('WxAgg') problem. > > A quick dirty fix for your plot problem would be to replace line 123 by > plt.savefig('dtt_allmovstacksNEW.png', dpi=300) > > And wait for advice from Thomas for a better idea. > > Cheers, > > Aurelien > > > 2014-10-07 18:26 GMT-04:00 Oscar Alberto Castro Artola < > oscar.cas.art(a)gmail.com&gt;gt;: > > Aurelien, >> thank you for your answer! I did upgrade matplotlib to 1.4.0 but the >> > error > >> message is still there. I tried to comment the line #3 in >> > *s07plot_dtt.py* > >> (mpl.use('WxAgg')) and got this error: >> >> *oscar@terminus:~/Doctorado/TI_2/sweet_noise$ py s07plot_dtt.py * >> >> >> */home/oscar/bin/python/anaconda/lib/python2.7/site- packages/setuptools-3.6-py2.7.egg/pkg_resources.py:1045: > UserWarning: /home/oscar/.python-eggs is writable by group/others and >> vulnerable to attack when used with get_resource_filename. Consider a >> > more > >> secure location (set with .set_extraction_path or the PYTHON_EGG_CACHE >> environment variable).* >> *Traceback (most recent call last):* >> * File "s07plot_dtt.py", line 123, in <module>* >> * plt.savefig('dtt_allmovstacksNEW_%s.png' % dttname, dpi=300)* >> *NameError: global name 'dttname' is not defined* >> >> I would apreciate any help! Thanks! >> >> Oscar >> >> On Tue, Oct 7, 2014 at 11:25 AM, Aurélien Mordret &lt;mordret(a)mit.edu&gt; >> > wrote: > >> Hi Oscar, >>> I'm not very familiar with Python either but it seems that something >>> >> is > wrong with matplotlib package. >>> You can try to upgrade it... >>> >>> easy_install --upgrade matplotlib >>> >>> Aurelien. >>> >>> 2014-10-07 12:19 GMT-04:00 Oscar Alberto Castro Artola < >>> oscar.cas.art(a)gmail.com&gt;gt;: >>> >>> Hi, >>>> I have just updated to 1.2.5 and tried to run *s07plot_dtt.py >>>> >>> *(again > on >>> both PCs) and I got this error message: >>>> oscar@terminus:~/msnoise_sismo$ py s07plot_dtt.py >>>> Traceback (most recent call last): >>>> File "s07plot_dtt.py", line 13, in <module> >>>> import matplotlib.pyplot as plt >>>> File >>>> >>>> >>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- packages/matplotlib/pyplot.py", > line 98, in <module> >>>> _backend_mod, new_figure_manager, draw_if_interactive, _show = >>>> pylab_setup() >>>> File >>>> >>>> >>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- packages/matplotlib/backends/__init__.py", > line 28, in pylab_setup >>>> globals(),locals(),[backend_name],0) >>>> File >>>> >>>> >>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- packages/matplotlib/backends/backend_wxagg.py", > line 6, in <module> >>>> import backend_wx # already uses >>>> >>> wxversion.ensureMinimal('2.8') >> File >>>> >>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- packages/matplotlib/backends/backend_wx.py", > line 53, in <module> >>>> raise ImportError(missingwxversion) >>>> ImportError: Matplotlib backend_wx and backend_wxagg require >>>> >>> wxversion, >> which was not found. >>>> Please help!!!!! >>>> >>>> Oscar >>>> _______________________________________________ >>>> MSNoise mailing list >>>> MSNoise(a)mailman-as.oma.be >>>> http://mailman-as.oma.be/mailman/listinfo/msnoise >>>> >>>> >>> -- >>> ========================== >>> >>> Aurelien Mordret >>> >>> Postdoctoral fellow >>> Department of Earth, Atmospheric and Planetary Sciences >>> Massachusetts Institute of Technology >>> 54-526 >>> Cambridge, MA 02139-4307 >>> e-mail: mordret(a)mit.edu >>> web: http://web.mit.edu/mordret/www >>> _______________________________________________ >>> MSNoise mailing list >>> MSNoise(a)mailman-as.oma.be >>> http://mailman-as.oma.be/mailman/listinfo/msnoise >>> >>> >>> _______________________________________________ >> MSNoise mailing list >> MSNoise(a)mailman-as.oma.be >> http://mailman-as.oma.be/mailman/listinfo/msnoise >> >> > -- > ========================== > > Aurelien Mordret > > Postdoctoral fellow > Department of Earth, Atmospheric and Planetary Sciences > Massachusetts Institute of Technology > 54-526 > Cambridge, MA 02139-4307 > e-mail: mordret(a)mit.edu > web: http://web.mit.edu/mordret/www > _______________________________________________ > MSNoise mailing list > MSNoise(a)mailman-as.oma.be > http://mailman-as.oma.be/mailman/listinfo/msnoise > > _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be http://mailman-as.oma.be/mailman/listinfo/msnoise

1) remove line 3 from the code (https://github.com/ROBelgium/ MSNoise/blob/1.2.5/s07plot_dtt.py#L3) 2) do you have more than 1 pair (2 stations) in the processing ? Thomas Le 08/10/2014 02:23, Aurélien Mordret a écrit : Hi, > Is the file containing the dtt results OK? Does it have results in > there? > > Actually, I don't use the plotting function, I use my own, GMT or > Matlab > codes to plot the results, so I may not be able to help you further > than > that... > > Cheers, > Aurelien > > 2014-10-07 20:12 GMT-04:00 Oscar Alberto Castro Artola < > oscar.cas.art(a)gmail.com&gt;gt;: > > Hi Aurelien, > >> thank you very much for your help! It actually worked but with an >> empty >> figure window. I tried to assign a name to *dttname* but with the same >> result. >> >> Any idea? >> >> Thanks! >> >> Oscar >> >> On Tue, Oct 7, 2014 at 5:53 PM, Aurélien Mordret &lt;mordret(a)mit.edu&gt; >> wrote: >> >> Hi Oscar, >> >>> It seems to me that you miss the wxPython package. Try to install it. >>> >>> That >> >> should fix the mpl.use('WxAgg') problem. >>> >>> A quick dirty fix for your plot problem would be to replace line 123 >>> by >>> plt.savefig('dtt_allmovstacksNEW.png', dpi=300) >>> >>> And wait for advice from Thomas for a better idea. >>> >>> Cheers, >>> >>> Aurelien >>> >>> >>> 2014-10-07 18:26 GMT-04:00 Oscar Alberto Castro Artola < >>> oscar.cas.art(a)gmail.com&gt;gt;: >>> >>> Aurelien, >>> >>>> thank you for your answer! I did upgrade matplotlib to 1.4.0 but the >>>> >>>> error >>> >>> message is still there. I tried to comment the line #3 in >>>> >>>> *s07plot_dtt.py* >>> >>> (mpl.use('WxAgg')) and got this error: >>>> >>>> *oscar@terminus:~/Doctorado/TI_2/sweet_noise$ py s07plot_dtt.py * >>>> >>>> >>>> */home/oscar/bin/python/anaconda/lib/python2.7/site- >>>> >>> packages/setuptools-3.6-py2.7.egg/pkg_resources.py:1045: >> >> UserWarning: /home/oscar/.python-eggs is writable by group/others and >>> >>>> vulnerable to attack when used with get_resource_filename. Consider >>>> a >>>> >>>> more >>> >>> secure location (set with .set_extraction_path or the >>>> PYTHON_EGG_CACHE >>>> environment variable).* >>>> *Traceback (most recent call last):* >>>> * File "s07plot_dtt.py", line 123, in <module>* >>>> * plt.savefig('dtt_allmovstacksNEW_%s.png' % dttname, dpi=300)* >>>> *NameError: global name 'dttname' is not defined* >>>> >>>> I would apreciate any help! Thanks! >>>> >>>> Oscar >>>> >>>> On Tue, Oct 7, 2014 at 11:25 AM, Aurélien Mordret &lt;mordret(a)mit.edu&gt; >>>> >>>> wrote: >>> >>> Hi Oscar, >>>> >>>>> I'm not very familiar with Python either but it seems that >>>>> something >>>>> >>>>> is >>>> >>> wrong with matplotlib package. >>> >>>> You can try to upgrade it... >>>>> >>>>> easy_install --upgrade matplotlib >>>>> >>>>> Aurelien. >>>>> >>>>> 2014-10-07 12:19 GMT-04:00 Oscar Alberto Castro Artola < >>>>> oscar.cas.art(a)gmail.com&gt;gt;: >>>>> >>>>> Hi, >>>>> >>>>>> I have just updated to 1.2.5 and tried to run *s07plot_dtt.py >>>>>> >>>>>> *(again >>>>> >>>> on >>> >>>> both PCs) and I got this error message: >>>>> >>>>>> oscar@terminus:~/msnoise_sismo$ py s07plot_dtt.py >>>>>> Traceback (most recent call last): >>>>>> File "s07plot_dtt.py", line 13, in <module> >>>>>> import matplotlib.pyplot as plt >>>>>> File >>>>>> >>>>>> >>>>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- >>>>>> >>>>> packages/matplotlib/pyplot.py", >> >> line 98, in <module> >>> >>>> _backend_mod, new_figure_manager, draw_if_interactive, _show = >>>>>> pylab_setup() >>>>>> File >>>>>> >>>>>> >>>>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- >>>>>> >>>>> packages/matplotlib/backends/__init__.py", >> >> line 28, in pylab_setup >>> >>>> globals(),locals(),[backend_name],0) >>>>>> File >>>>>> >>>>>> >>>>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- >>>>>> >>>>> packages/matplotlib/backends/backend_wxagg.py", >> >> line 6, in <module> >>> >>>> import backend_wx # already uses >>>>>> >>>>>> wxversion.ensureMinimal('2.8') >>>>> >>>> File >>>> >>>>> >>>>>> "/home/oscar/bin/python/anaconda/lib/python2.7/site- >>>>>> >>>>> packages/matplotlib/backends/backend_wx.py", >> >> line 53, in <module> >>> >>>> raise ImportError(missingwxversion) >>>>>> ImportError: Matplotlib backend_wx and backend_wxagg require >>>>>> >>>>>> wxversion, >>>>> >>>> which was not found. >>>> >>>>> Please help!!!!! >>>>>> >>>>>> Oscar >>>>>> _______________________________________________ >>>>>> MSNoise mailing list >>>>>> MSNoise(a)mailman-as.oma.be >>>>>> http://mailman-as.oma.be/mailman/listinfo/msnoise >>>>>> >>>>>> >>>>>> -- >>>>> ========================== >>>>> >>>>> Aurelien Mordret >>>>> >>>>> Postdoctoral fellow >>>>> Department of Earth, Atmospheric and Planetary Sciences >>>>> Massachusetts Institute of Technology >>>>> 54-526 >>>>> Cambridge, MA 02139-4307 >>>>> e-mail: mordret(a)mit.edu >>>>> web: http://web.mit.edu/mordret/www >>>>> _______________________________________________ >>>>> MSNoise mailing list >>>>> MSNoise(a)mailman-as.oma.be >>>>> http://mailman-as.oma.be/mailman/listinfo/msnoise >>>>> >>>>> >>>>> _______________________________________________ >>>>> >>>> MSNoise mailing list >>>> MSNoise(a)mailman-as.oma.be >>>> http://mailman-as.oma.be/mailman/listinfo/msnoise >>>> >>>> >>>> -- >>> ========================== >>> >>> Aurelien Mordret >>> >>> Postdoctoral fellow >>> Department of Earth, Atmospheric and Planetary Sciences >>> Massachusetts Institute of Technology >>> 54-526 >>> Cambridge, MA 02139-4307 >>> e-mail: mordret(a)mit.edu >>> web: http://web.mit.edu/mordret/www >>> _______________________________________________ >>> MSNoise mailing list >>> MSNoise(a)mailman-as.oma.be >>> http://mailman-as.oma.be/mailman/listinfo/msnoise >>> >>> _______________________________________________ >>> >> MSNoise mailing list >> MSNoise(a)mailman-as.oma.be >> http://mailman-as.oma.be/mailman/listinfo/msnoise >> >> >> > _______________________________________________ MSNoise mailing list MSNoise(a)mailman-as.oma.be http://mailman-as.oma.be/mailman/listinfo/msnoise _______________________________________________
